Caterpillar 2

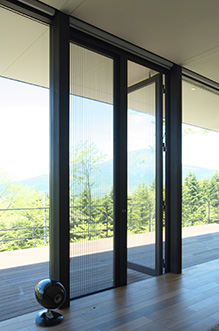

Metact Pleat Net Caterpillar 2

Retractable PP pleated-net insect screen,easy installable to existing doors.

Feature


1. Retractable
Pleat Net is retracted and kept compact when not in use.
2. Barrier free
Wheelchair accessible with a flat 5mm high bottom rail that enables passage without any difficulties with minimal tripping hazard.
3. Maintenance
Remove the screen door and water-wash.
4. PP Net
NET (100% polypropilene monofilament ) with Metaco Stamp-pleating Technology achieves higher rigidity and mechanical resistance, keeping the entire screen upright, letting maximum airflow and a pleasant visual impression. Shielded with pigment black (Carbon) for protection from UV radiation.
White
Bronze
5. Colors available
Available in 2 colors

Configuration




Manufacture restriction table / Single Door
Hmm \ Wmm 300~500 501~700 701~900 901~1100 1101~1300 1301~1500 1501~1700 1701~1900 1901~2200
1200~1400 8LF 88L 88L - - - - - -
1401~1600 8LF 88L 88L 88L - - - - -
1601~1800 8LF 8LF 88L 88L 88L - - - -
1801~2000 8LF 8LF 88L 88L 88L 88LW - - -
2001~2200 8LF 8LF 8LF 88L 88L 88LW 88LW - -
2201~2400 8LF 8LF 8LF 88L 88L 88LW 88LW 88LW -
2401~2600 8LF 8LF 8LF 8LF 88L 88LW 88LW 88LW 88LW
2601~2800 8LF 8LF 8LF 8LF 88L 88LW 88LW 88LW 88LW
2801~3000 8LF 8LF 8LF 8LF 8LF 88LW 88LW 88LW 88LW

Manufacture restriction table / Double Door
Hmm \ Wmm 600~1000 1001~1400 1401~1800 1801~2200 2201~2600 2601~3000 3001~3400 3401~3800 3801~4400
1200~1400 8LF 88L 88L - - - - - -
1401~1600 8LF 88L 88L 88L - - - - -
1601~1800 8LF 8LF 88L 88L 88L - - - -
1801~2000 8LF 8LF 88L 88L 88L 88LW - - -
2001~2200 8LF 8LF 8LF 88L 88L 88LW 88LW - -
2201~2400 8LF 8LF 8LF 88L 88L 88LW 88LW 88LW -
2401~2600 8LF 8LF 8LF 8LF 88L 88LW 88LW 88LW 88LW
2601~2800 8LF 8LF 8LF 8LF 88L 88LW 88LW 88LW 88LW
2801~3000 8LF 8LF 8LF 8LF 8LF 88LW 88LW 88LW 88LW

Installation

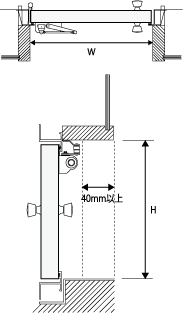

Install location should meet the conditions below;
1. Install location (door frame, wall, floor, etc..) is flat.
2. Install location has a width space of 40mm or more.
3. Door closer, handles and/or knobs do not interfere with the product.
4. Door opening is square, parallel and that all 4 corners are right-angled.

Measuring


Check the install location and measure the width and height of your opening.
NOTE : Measure the opening width and height in 2 or 3 different places, as many openings are not square.
When placing your order, use the biggest size of the measurements.
NOTE : The top margin of the product allows you to adjust +10mm, -20mm in height.

Support Parts (Optional parts. Contact us in detail)




Document download

Metact Pleat Net Caterpillar 2 Tandem


This is the multi screen specification. You can connect up to 3 screen-units on one side, and cover openings up to 7.8m in width with double retracting systems.
