ROLL SCREEN

Standard system




Metaco has developed Roller Blind component parts since 1973 and has accumulated its know-how & technology.
As the result, Metaco can offer various types of component parts to meet each customer's demand.

Metaco can supply very functional and unique component part to enjoy satisfied performance.

Roller Tube
Diameter : 40mm,48mm,60mm,80mm,100mm,130mm,160mm

Spring Motor (Spring Operation)
7 types for MRS40
is available to cover a wide range of Roller Blind size.

Spring Booster (Hand Operation)
7 types for MRS40
8 types for MRS60/80
is available to cover a wide range of Roller Blind size.

Limit Brake
Speed Deceralation for Spring Operation
To control screen rising speed.
Pre-Set upper stop position
Rising screen stops at the same upper stop position every time and adjusts it easily.

Reduction Gear
1 : 1 and 1 : 5 Gear Ratio for MRS40
1 : 3.74 and 1 : 14 Gear Ratio for MRS60/80
is available to get light and smooth chain operation.

Bracket
Joint Bracket for MRS40 and MRS60/80
Angle Bracket for MRS60/80
is available to link several Roller Blinds with one operation.

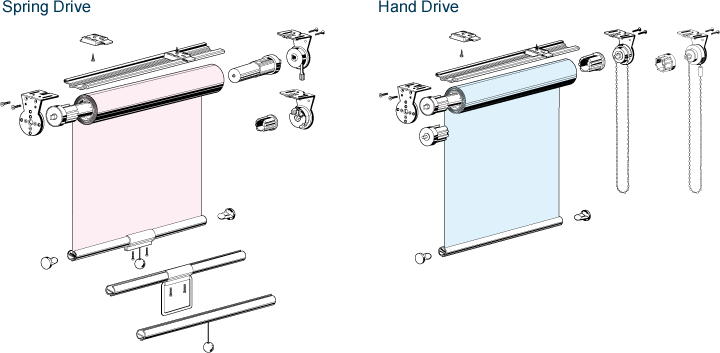

Spring Drive


System MRS40
Category Medium Duty
Roller Tube Diameter
* Aluminum Extrusion
40mm
Max Blind Size: Width/Height W:3000mm / H:3000mm
Suitable Screen Weight: by 400g/㎡
Speed Control Device yes
Spring Motor type 7 types
Component Part Color White
Ivory

Hand Drive


System MRS40 MRS60 MRS80
Category Medium Duty Heavy Duty Heavy Duty
Roller Tube Diameter
* Aluminum Extrusion
40mm 60mm 80mm
Max Blind Size: Width/Height W:3000mm / H:4000mm W:3600mm / H:5000mm W:4000mm / H:5000mm
Suitable Screen Weight: by 400g/㎡ over 600g /㎡ over 600g /㎡
Reduction Gear Ratio 1 : 1
1 : 5
1 : 3.74
1 : 14
1 : 3.74
1 : 14
Spring Booster type 7 types 1 : 3.74
1 : 14
8 types
Unique Bracket system Joint Bracket Joint Bracket
Angle Bracket
Joint Bracket
Angle Bracket
Component Part Color Ivory
Black
Silver
Silver
Silver
Silver
