Pleat Net Side Fix


Metaco Pleat Net Side Fix (20mm)

What is good about Metaco Pleat Net (Side fix) for window is that
you can close it when necessary and can store it when not in use.
We use a magnetic specification to fully close the single type to
the frame or to connect double slidings somewhere in the middle.

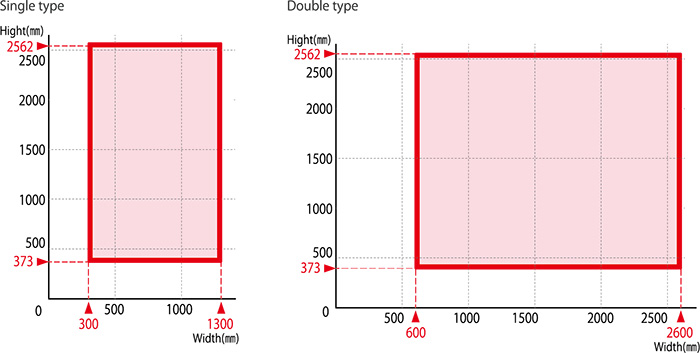

The maximum width is 2600mm for double type.

Feature


In use (Closed)
Retracted (Opened)
1.
Suitable for wide range of windows.
(Maximum width 2600mm in double door)

2.
When retracting the screen door, the slide bar and the stile post fits perfectly, it makes a pleasant visual impression.

Black

Gray
3.
PP Net
NET (100% polypropilene monofilament ) with Metaco Stamp-pleating Technology achieves higher rigidity and mechanical resistance, keeping the entire screen upright, letting maximum airflow and a pleasant visual impression. Shielded with pigment black (Carbon) for protection from UV radiation.(Black)

White

Silver

Champagne Gold

Black
4.
Colors available







*Product image for illustration purposes only. Actual product may vary.

How to Operate


Easily open/close the screen operating the sliding bar.
The screens (single and double doors) close tightly by magnet.

Maintenance


Wipe the mesh lightly with a clean damp cloth.

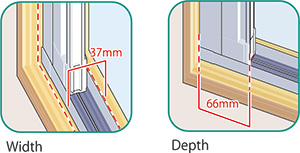

Install Location Conditions


Check if the install location is not obstructed by any object that may interfere with installation and operation.

1. Choose a flat place with a 37mm width space for installation.
2. Check if the window handles do not interfere with the product.
3. Verify if the opening being screened is square, parallel and that all 4 corners are right-angled.

Windows suitable for installing to


Method of measuring


The required casing depth shown in Figure (a) to fit a product in the wooden frame is more than 37mm. Please designate the width and height of the installing space.
Attention: These measurements should be made on a few points of both width and height and the maxiam measurement should be used, When the wooden frame may have been deformed.

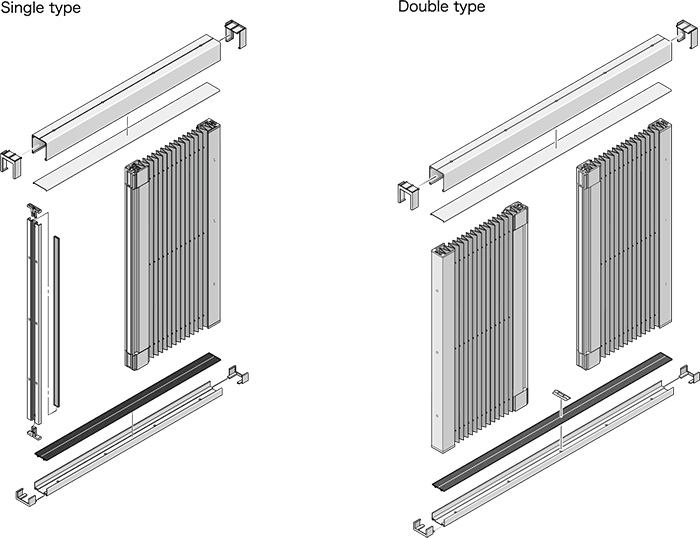

Configuration




Embedding the frames will create neat and tidy finish.
The pleat net is retracted and kept compact when not in use.
The product depth is 31mm.
Colors available :White,Black
White
Black
*Product image for illustration purposes only. Actual product may vary.
