TOP > INSECT NET > Zipooh

INSECT NET

Zipooh


Metaco Pleat Net Zipooh

A retractable pleated-net insect screen easy to exchange the net.
Replace the net easily with a new one in case it gets stained or damaged.
You can also wash the net with water by simply removing it from the screen door unit.

Feature


1. Easy net replacement
Pleated net can be replaced. (Option)
2. Retractable
Pleat Net is retracted and kept compact when not in use.
3. Barrier free
Wheelchair accessible with a flat 5mm high bottom rail that enables passage without any difficulties with minimal tripping hazard.
This newly designed anti-derailment bottom rail prevents the product deviating from the track in the event of unexpected impact and/or strong wind.
4. Maintenance
Remove the screen door and water-wash.
5. PP Net
NET (100% polypropilene monofilament ) with Metaco Stamp-pleating Technology achieves higher rigidity and mechanical resistance, keeping the entire screen upright, letting maximum airflow and a pleasant visual impression. Shielded with pigment black (Carbon) for protection from UV radiation.
White:W
Bronze:N
6. Colors available

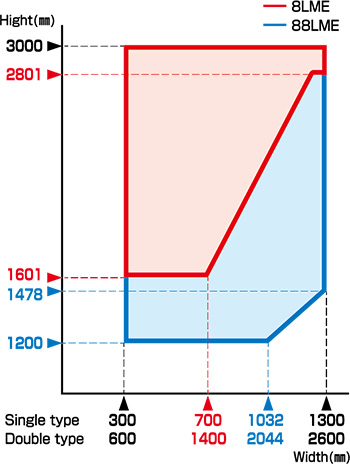

Product work dimension




Manufacture restriction table / Single Door
Hmm \ Wmm 300~500 501~700 701~900 901~1100 1101~1300 1301~1500 1501~1700 1701~1900 1901~2200
1200~1400 8LME 88LME 88LME - - - - - -
1401~1600 8LME 88LME 88LME 88LME - - - - -
1601~1800 8LME 8LME 88LME 88LME 88LME - - - -
1801~2000 8LME 8LME 88LME 88LME 88LME 88LMEW - - -
2001~2200 8LME 8LME 8LME 88LME 88LME 88LMEW 88LMEW - -
2201~2400 8LME 8LME 8LME 88LME 88LME 88LMEW 88LMEW 88LMEW -
2401~2600 8LME 8LME 8LME 8LME 88LME 88LMEW 88LMEW 88LMEW 88LMEW
2601~2800 8LME 8LME 8LME 8LME 88LME 88LMEW 88LMEW 88LMEW 88LMEW
2801~3000 8LME 8LME 8LME 8LME 8LME 88LMEW 88LMEW 88LMEW 88LMEW

Manufacture restriction table / Double Door
Hmm \ Wmm 600~1000 1001~1400 1401~1800 1801~2200 2201~2600 2601~3000 3001~3400 3401~3800 3801~4400
1200~1400 8LME 88LME 88LME - - - - - -
1401~1600 8LME 88LME 88LME 88LME - - - - -
1601~1800 8LME 8LME 88LME 88LME 88LME - - - -
1801~2000 8LME 8LME 88LME 88LME 88LME 88LMEW - - -
2001~2200 8LME 8LME 8LME 88LME 88LME 88LMEW 88LMEW - -
2201~2400 8LME 8LME 8LME 88LME 88LME 88LMEW 88LMEW 88LMEW -
2401~2600 8LME 8LME 8LME 8LME 88LME 88LMEW 88LMEW 88LMEW 88LMEW
2601~2800 8LME 8LME 8LME 8LME 88LME 88LMEW 88LMEW 88LMEW 88LMEW
2801~3000 8LME 8LME 8LME 8LME 8LME 88LMEW 88LMEW 88LMEW 88LMEW

Installation


Install location should meet the conditions below;
1. Install location (door frame, wall, floor, etc..) is flat.
2. Install location has a width space of 40mm or more.
3. Door closer, handles and/or knobs do not interfere with the product.
4. Door opening is square, parallel and that all 4 corners are right-angled.

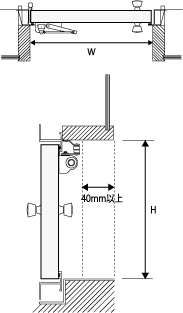

Measuring


Check the install location and measure the width and height of your opening.
NOTE : Measure the opening width and height in 2 or 3 different places, as many openings are not square.
When placing your order, use the biggest size of the measurements.
NOTE : The top margin of the product allows you to adjust +10mm, -20mm in height.

Support Parts (Optional parts. Contact us indetail)




Document download

メタコプリーツネット侍風タンデム

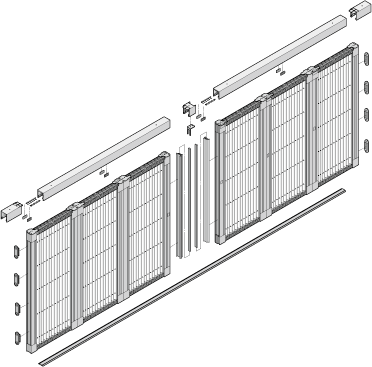

This is the multi screen specification. You can connect up to 3 screen-units on one side, and cover openings up to 7.8m in width with double retracting systems.
